As shown in figure "C" of the illustration, what are the purposes of the coupling capacitor Cc and the bypass capacitor Cbp respectively. EL-0045
A) Cc blocks any AC component associated with the input from reaching the base Cbp helps minimize degeneration of the AC output signal
B) Cc blocks any DC component associated with the input from reaching the base Cbp helps maximize degeneration of the AC output signal
C) Cc blocks any DC component associated with the input from reaching the base Cbp helps minimize degeneration of the AC output signal
D) Cc blocks any AC component associated with the input from reaching the base Cbp helps maximize degeneration of the AC output signal
loading answer...

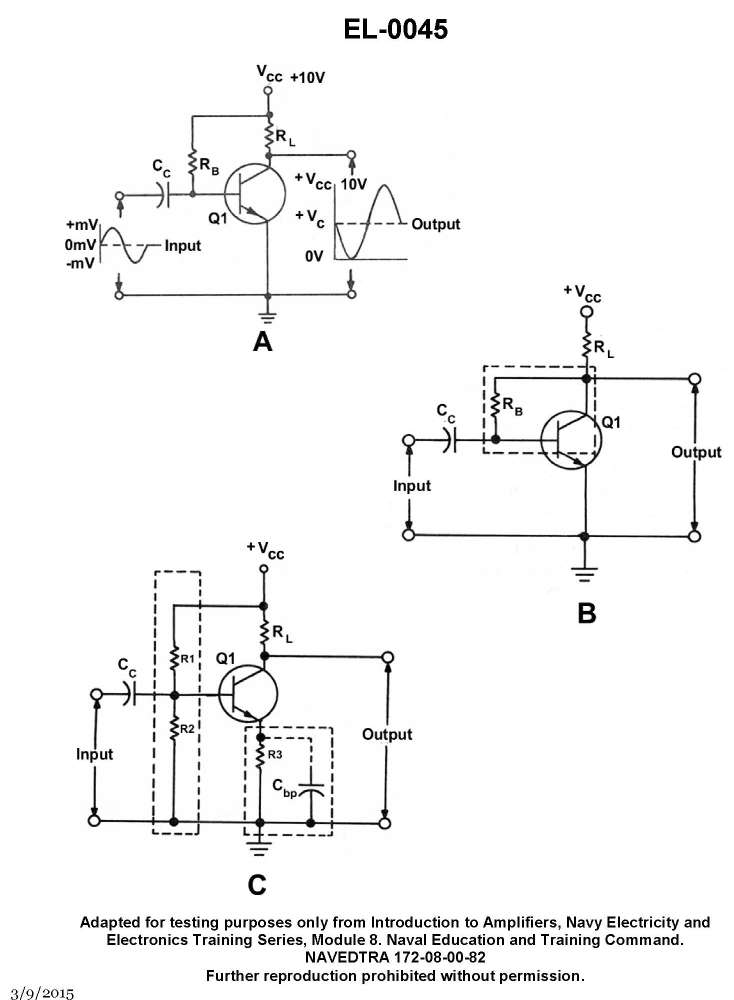

Illustration EL-0045

Click to view image
