Engine : Motor Plants and Auxiliary Boilers - 339/947
|
|---|
| « Previous Question |
| Which of the listed cylinder head design features is shown in the illustration? Illustration MO-0013 |
| A) The valve cages are provided for the exhaust valves. |
| B) The engine is equipped with a dry liner. |
| C) A gastight seal is provided by a gasket between the cylinder head and cylinder liner. |
| D) The engine cylinder head is fitted with replaceable valve seats. |
loading answer...

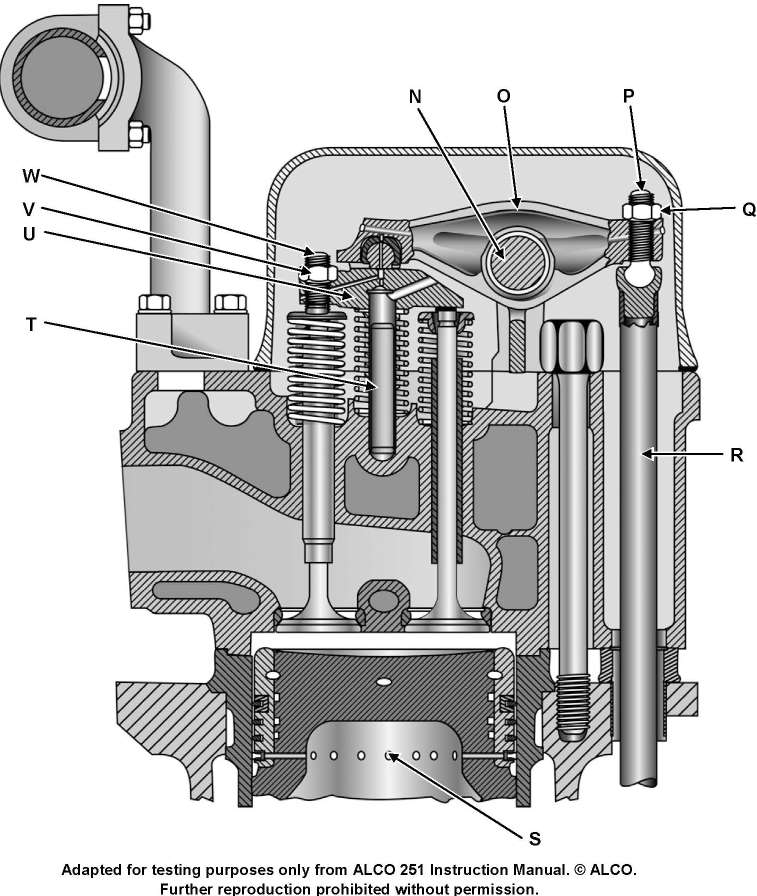

Illustration MO-0013
| Comments |
|---|
| There are no comments for this question. |
