Engine : Motor Plants and Auxiliary Boilers - 214/947
Get a hint
« Previous Question

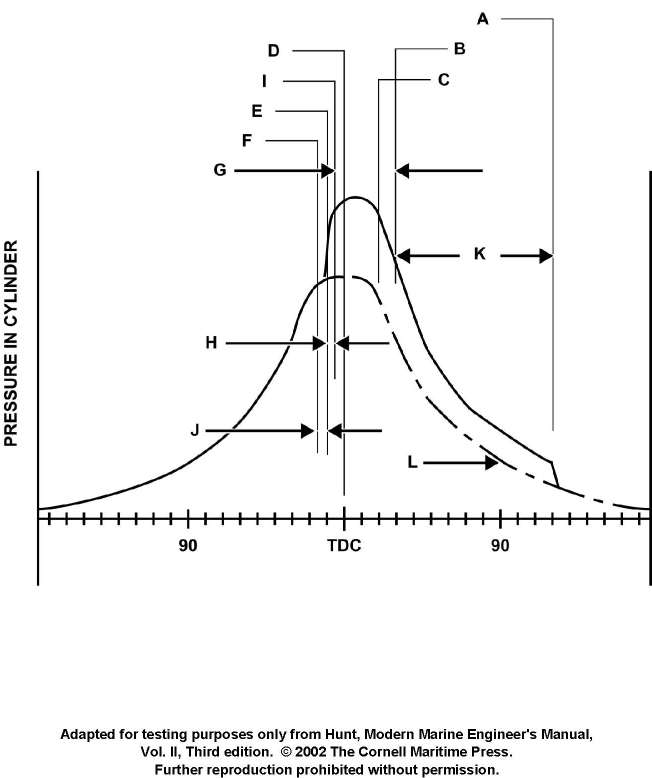

On the cylinder indicator diagram illustrated, the dotted line indicated as 'L' is describing the _________. Illustration MO-0033
A) cylinder pressure without injection
B) firing pressure at 90 degrees crank angle
C) beginning of compression
D) power expansion curve
loading answer...
Illustration MO-0033

Click to view image
