Engine : Electricity - 985/1386
Get a hint
« Previous Question
Referring to the illustration pertaining to the semiautomatic navigation light panel circuit, if the buzzer sounds and the masthead indicator light comes on, what statement is true concerning acknowledging and responding to the alarm while minimizing the danger to navigation? EL-0108
A) The buzzer is immediately silenced by turning the masthead transfer switch in the line section to the secondary lamp position. The masthead light will then immediately illuminate.
B) The buzzer cannot be silenced and the masthead light cannot be illuminated until the burned out masthead lamp is replaced.
C) The buzzer is immediately silenced by turning the master switch in the master section off. The masthead light can only be illuminated by replacing the burned out bulb.
D) The buzzer is immediately silenced by turning the masthead transfer switch in the line section off. The masthead light can only be illuminated by replacing the burned out bulb.
loading answer...

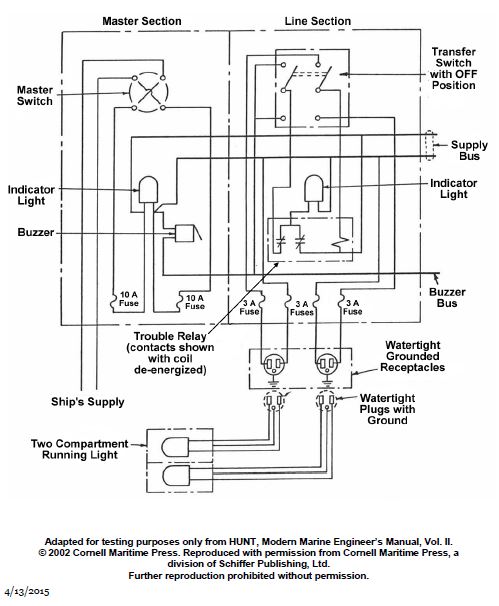

Illustration EL-0108

Click to view image
