| Referring to figure "2" of the illustration, what type of logic gate is symbolized? EL-0035 |
| A) OR gate |
| B) XOR gate |
| C) NOR gate |
| D) AND gate |
loading answer...

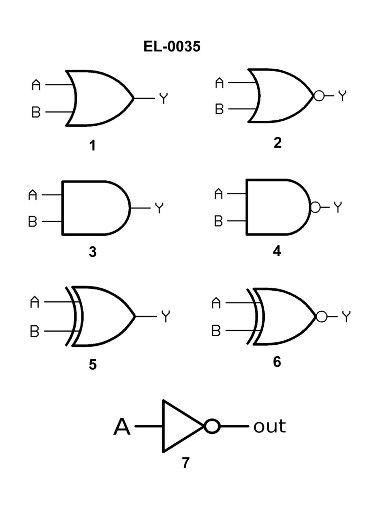

Illustration EL-0035
| Comments |
|---|
| - (0) |
| a small circle at the output (the pointy or rounded end), it means "NOT." So, an AND gate with a bubble becomes a NAND, and an OR gate with a bubble becomes a NOR gate. amex platinum card requests surge |
