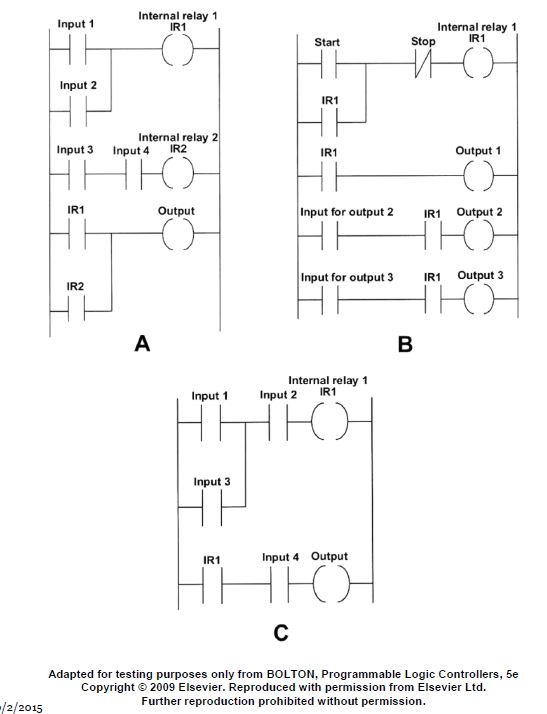

As shown in figure "A" of the illustration, what input conditions are required to produce an output? EL-0241 |
A) Both "Input 1" and "Input 2" must be closed OR both "Input 3" and "Input 4" must be closed. |
B) Both "Input 1 and "Input 2" must be closed AND either "Input 3" or "Input 4" must be closed. |
C) Either "Input 1" or "Input 2" must be closed OR both "Input 3" and "Input 4" must be closed. |
D) Either "Input 1" or "Input 2" must be closed AND either "Input 3" or "Input 4" must be closed. |
loading answer...
Illustration EL-0241Comments |
---|
There are no comments for this question. |
