Engine : Electricity - 736/1386
|
|---|
| « Previous Question |

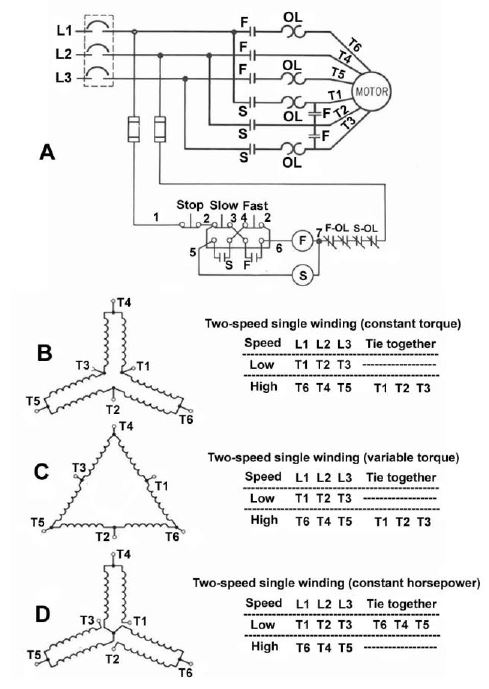

| As shown in the two-speed single winding three phase motor connection diagrams illustrated in figure "B", what is the connection scheme associated with low speed operation? EL-0118 |
| A) parallel delta |
| B) series delta |
| C) parallel wye |
| D) series wye |
loading answer...
Illustration EL-0118
| Comments |
|---|
| last3245 - 2020-09-26 00:31:23 Expired Member (1) |
| https://www.marathongenerators.com/generators/docs/manuals/Connection%20Diagrams.pdf Its WYE |
| jwgkeohane@yahoo.com - 2016-04-21 10:35:55 Member (11) |
| Are we sure that illustration "B" is a delta? It looks like a wye to me. |
