| As shown in the illustrated diagnostic setup for locating a shorted field coil of a ten- pole synchronous motor, if 240 VAC 60-Hz is applied across the brushes, what would be the individual voltage drops measured across each field coil assuming that none of the field coils are shorted? EL-0202 |
| A) 6 VAC |
| B) 48 VAC |
| C) 12 VAC |
| D) 24 VAC |
loading answer...

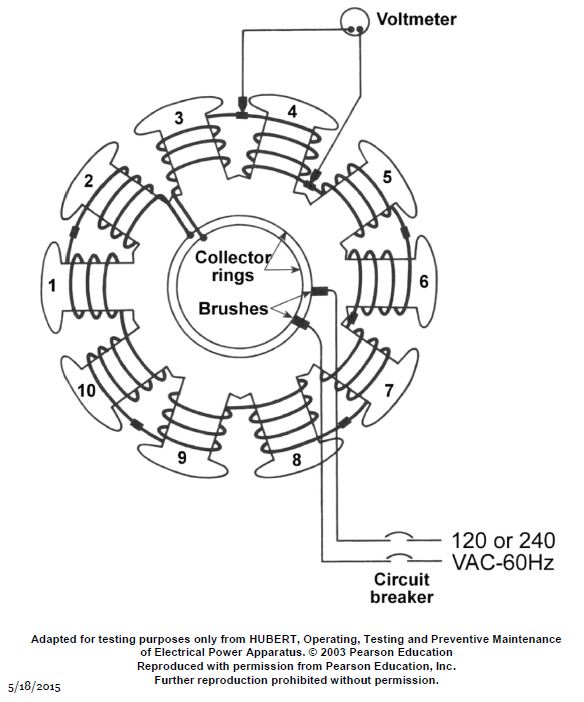

Illustration EL-0202
