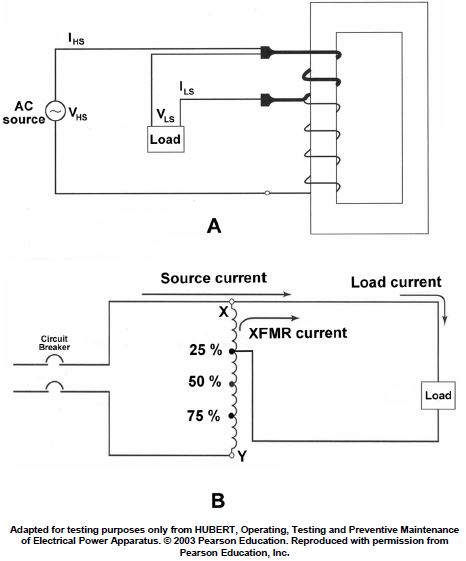

| What would be the source current and transformer current as shown in figure "B" of the illustration, with the secondary tap connected as shown, if the supply voltage at the branch circuit breaker is 440 VAC and the unity power factor load current draw is 50 amps? Illustration EL-0083 |
| A) source current is 37.5 amps, transformer current 92.5 amps. |
| B) source current is 12.5 amps, transformer current is 62.5 amps. |
| C) source current is 37.5 amps, transformer current is 12.5 amps. |
| D) source current is 12.5 amps, transformer current is 37.5 amps. |
