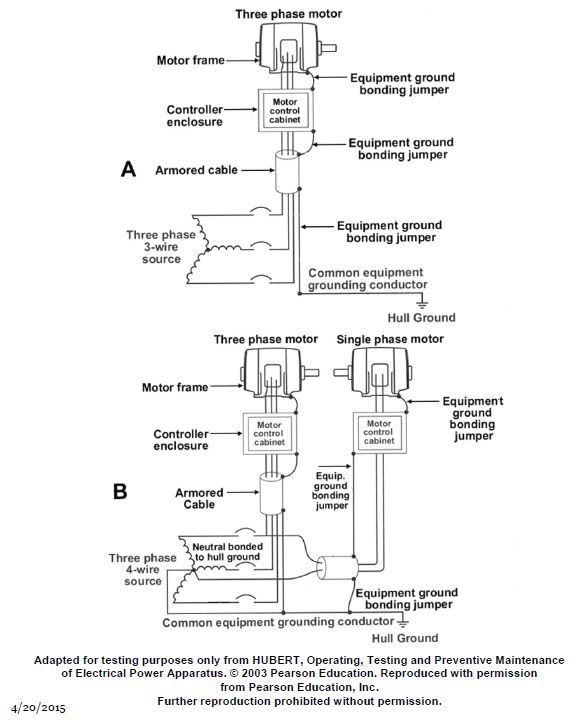

As shown in figure "B" of the illustration, with respect to the common equipment grounding conductor, what statement is true? Illustration EL-0125 |
A) The common equipment grounding conductor is insulated from the source and this is the least common arrangement onboard merchant vessels. |
B) The common equipment grounding conductor is solidly-grounded at the source and this is the least common arrangement onboard merchant vessels. |
C) The common equipment grounding conductor is insulated from the source and this is the most common arrangement onboard merchant vessels. |
D) The common equipment grounding conductor is solidly-grounded at the source and this is the most common arrangement onboard merchant vessels. |
