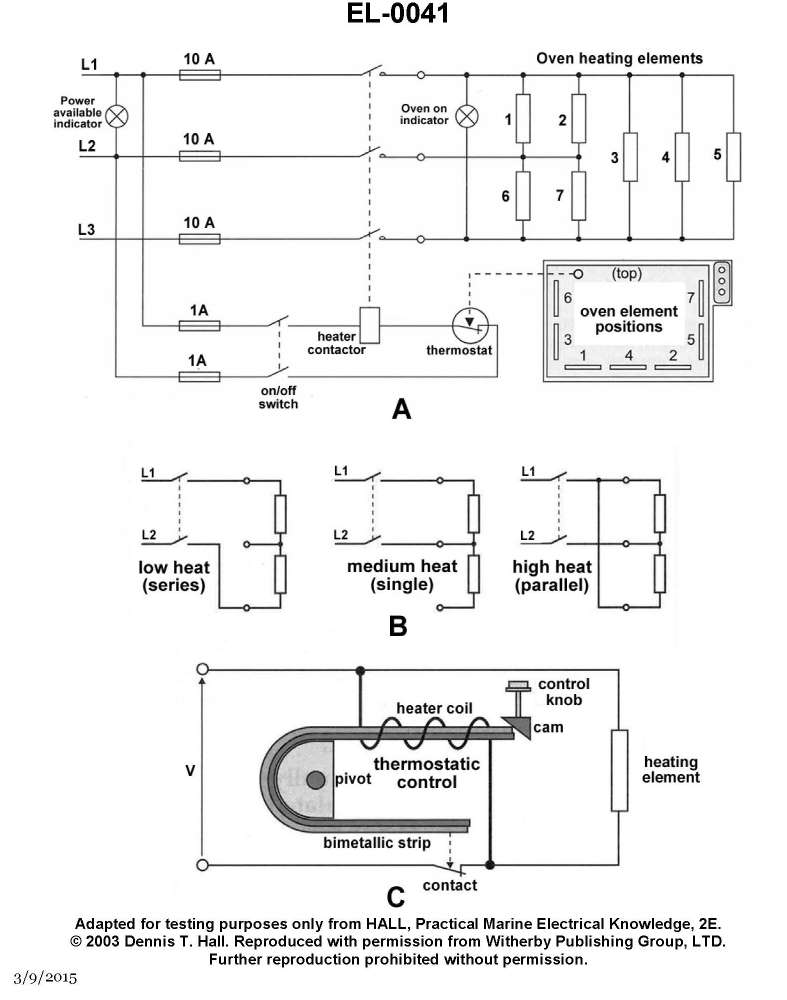

In the circuit 'B' of the illustration, what would be the result of the upper heating element being burned out and open circuited? Illustration EL-0041
A) low heat (series) position would result in no heat at allmedium heat (single) position would result in no heat at allhigh heat (parallel) position would result in medium heat
B) low heat (series) position would result in low heatmedium heat (single) position would result in medium heathigh heat (parallel) position would result in medium heat
C) low heat (series) position would result in no heat at allmedium heat (single) position would result in medium heathigh heat (parallel) position would result in medium heat
D) low heat (series) position would result in low heatmedium heat (single) position would result in medium heathigh heat (parallel) position would result in medium heat
loading answer...
Illustration EL-0041

Click to view image
