Engine : Electricity - 1179/1386
|
|---|
| « Previous Question |

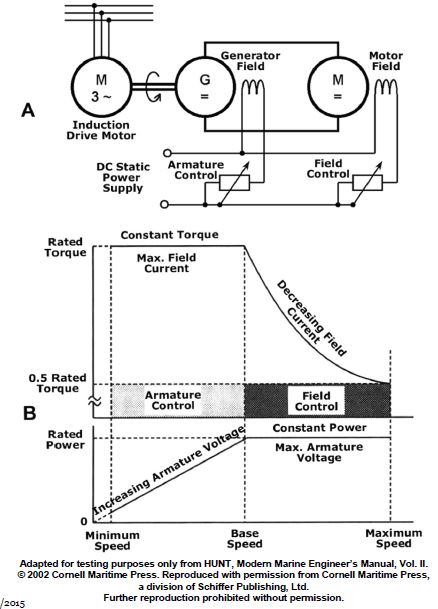

| As shown in figure "B" of the illustration, when the DC motor in figure "A" is operating at base speed what are the armature and field characteristics? Illustration EL-0153 |
| A) The motor is operating at maximum armature voltage and maximum field current. |
| B) The motor is operating at maximum armature voltage and minimum field current. |
| C) The motor is operating at minimum armature voltage and maximum field current. |
| D) The motor is operating at minimum armature voltage and minimum field current. |
loading answer...
Illustration EL-0153
