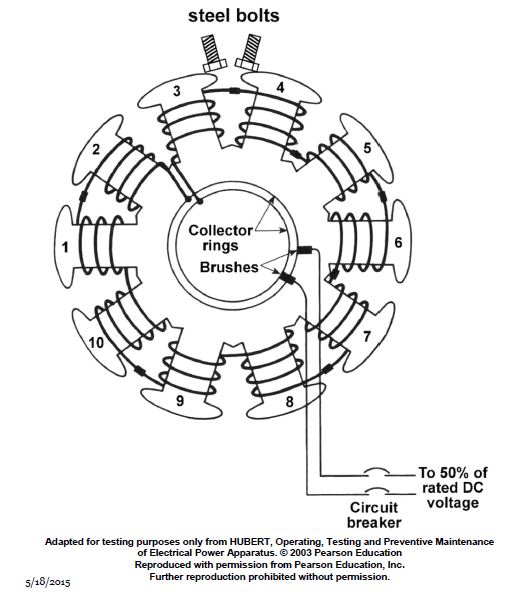

| As shown in the illustrated diagnostic setup checking for a reversed field pole on a ten- pole synchronous motor, if a rotor is being checked after reassembly and the steel bolts repel each other as shown in the illustration, what condition is indicated? Illustration EL-0205 |
| A) Either coil 3 or coil 4 has a reversed polarity |
| B) An undetermined coil has reversed polarity |
| C) Both coils 3 and coil 4 have the correct polarity |
| D) All coils have the correct polarity |
loading answer...
Illustration EL-0205
