The turns ratio of the step down transformer with dual voltage secondary shown in figure "B" of the illustration is two to one (total). If 220 volts were applied to terminals 'H1' and 'H2', what would be measured across 'X3' and 'X4'? EL-0082
A) 880 volts
B) 110 volts
C) 55 volts
D) 440 volts
loading answer...

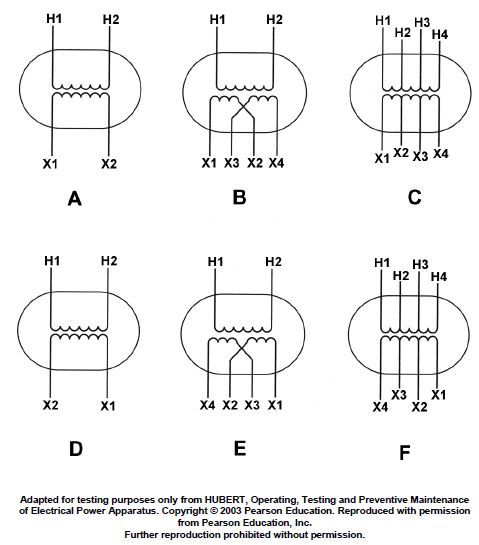

Illustration EL-0082

Click to view image
