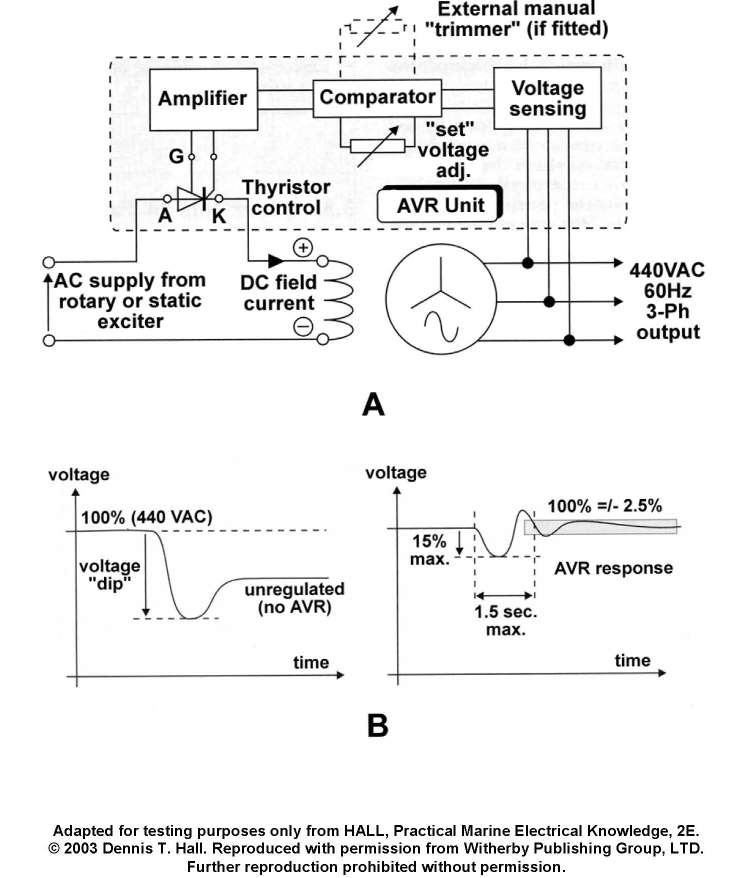

As shown in figure "A" of the illustration, what statement is true concerning the voltage sensing unit? Illustration EL-0066 |
A) The voltage sensor delivers an AC signal voltage equal in magnitude to the alternator output voltage to the comparator. |
B) The voltage sensor delivers a relatively low value of DC signal voltage proportional to the alternator output voltage to the comparator. |
C) The voltage sensor delivers a relatively low value of single phase AC signal voltage proportional to the alternator output voltage to the comparator. |
D) The voltage sensor delivers a DC signal voltage equal in magnitude to the alternator output voltage to the comparator. |
