| The welding symbol reference line using the inverted "V” indicates __________. Illustration GS-0076 |
| A) the first pass of the weld is to be back gouged |
| B) the arrow side of the weld is to be surface finished |
| C) the opposite side of the weld is to be surface finished |
| D) a "V" groove weld is to be made |
loading answer...

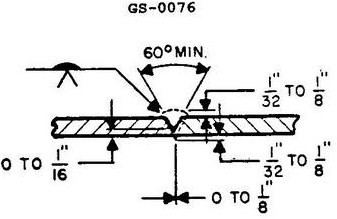

Illustration GS-0076
