Engine : Expired / Motor Plants and Auxiliary Boilers - 922/354
Get a hint
« Previous Question

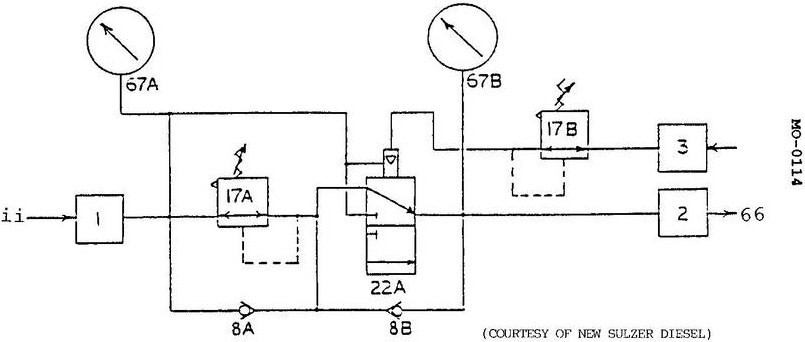

A propulsion engine, using the speed control circuit shown in the illustration, fails to function at speeds lower than the low end of the critical speed range. Which of the following statements describes what should be done to correct this malfunction? Illustration MO-0114
A) To increase the critical speed range of the engine, reduce the set point of 17A and 17B respectively, to .80 bar and 1.0 bar.
B) Device 17A needs to be replaced, repaired, or reset to the set point coinciding with the RPM value for the low end of the critical speed range.
C) The critical speed range will be varied as the set points of 17A or 17B are reset, therefore, another segment of the speed control circuit must be repaired.
D) Both 17A and 17B need to be reset to decrease the critical speed range, although this procedure will increase the operating range of the engine.
loading answer...
Illustration MO-0114

Click to view image

Comments
There are no comments for this question.
