Engine : Expired / General Subjects - 1218/881
|
|---|
| « Previous Question |
| The rudder torque capacity of the four ram steering gear illustrated, is rated at 44,210,000 inch-pounds with one power unit in operation. If the four ram system was able to be operated as a two ram system with both power units on line, what would be the available torque? GS-0067 |
| A) 11,052,500 inch pounds |
| B) 22,105,000 inch pounds |
| C) 44,210,000 inch pounds |
| D) 88,420,000 inch pounds |
loading answer...

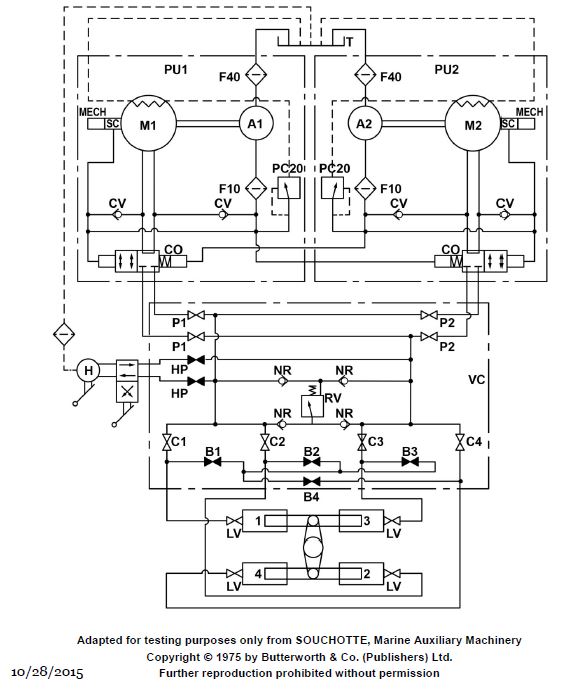

Illustration GS-0067
| Comments |
|---|
| There are no comments for this question. |
